Product specification - Technical data | |
Article number | 57206344 |
Type | RD31S-VDW.6Q.AL |

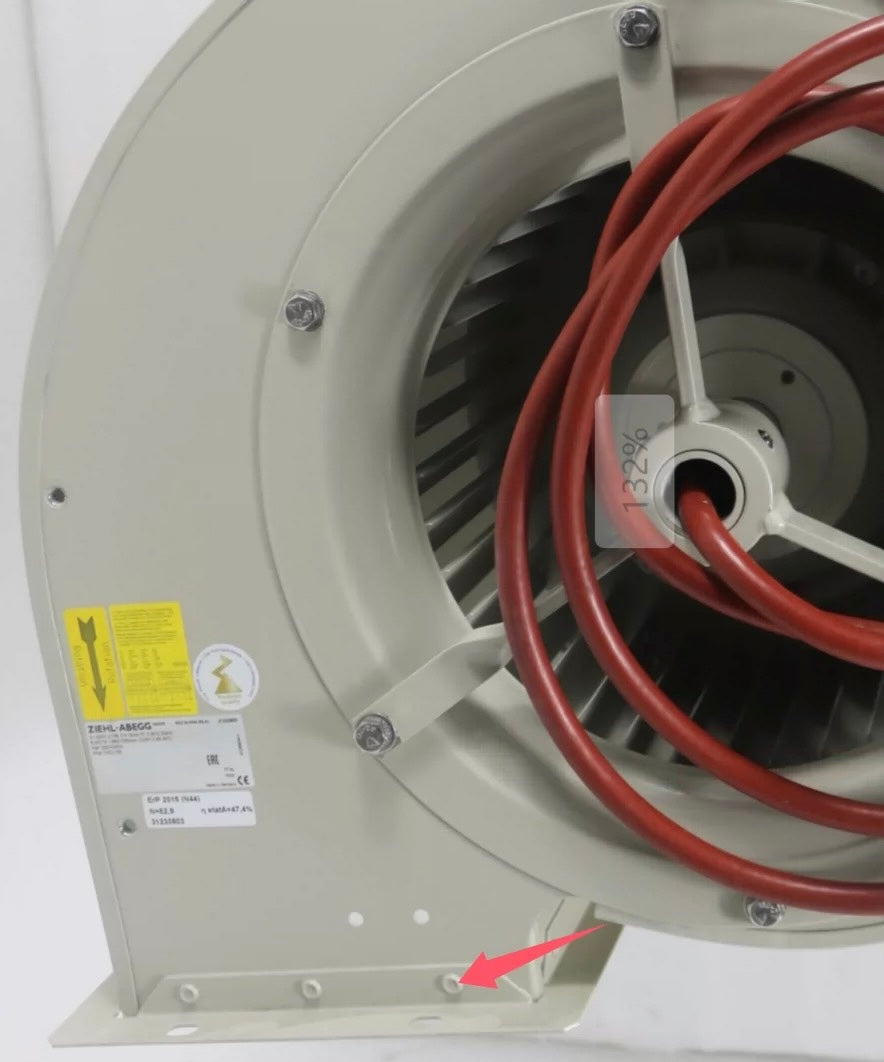

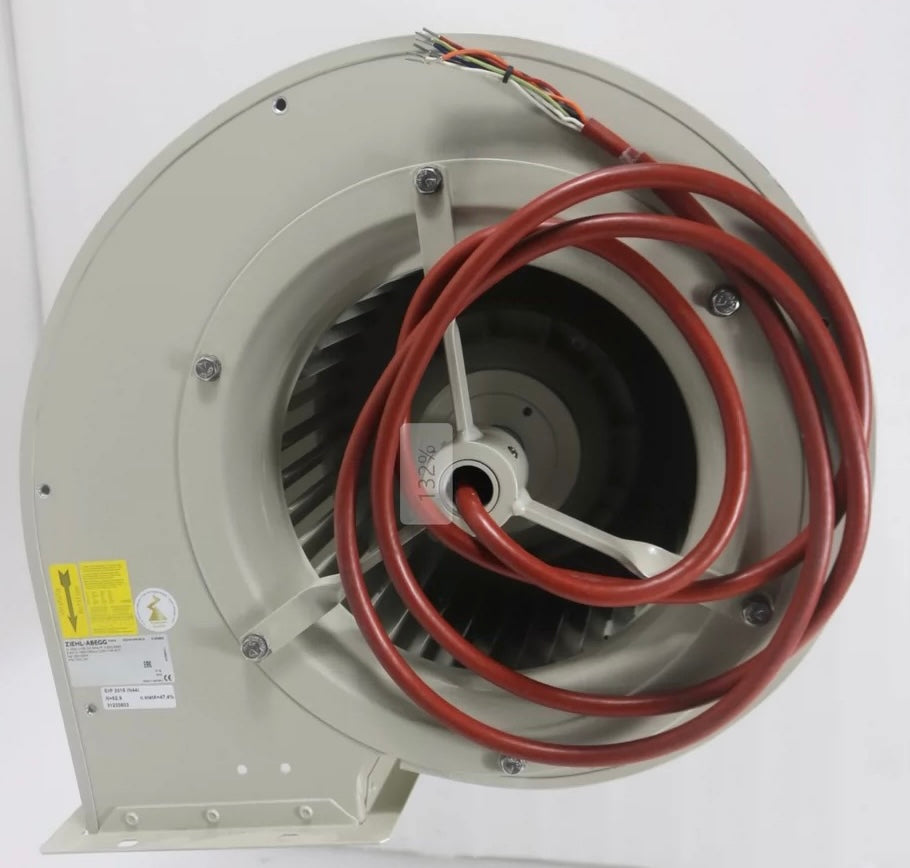

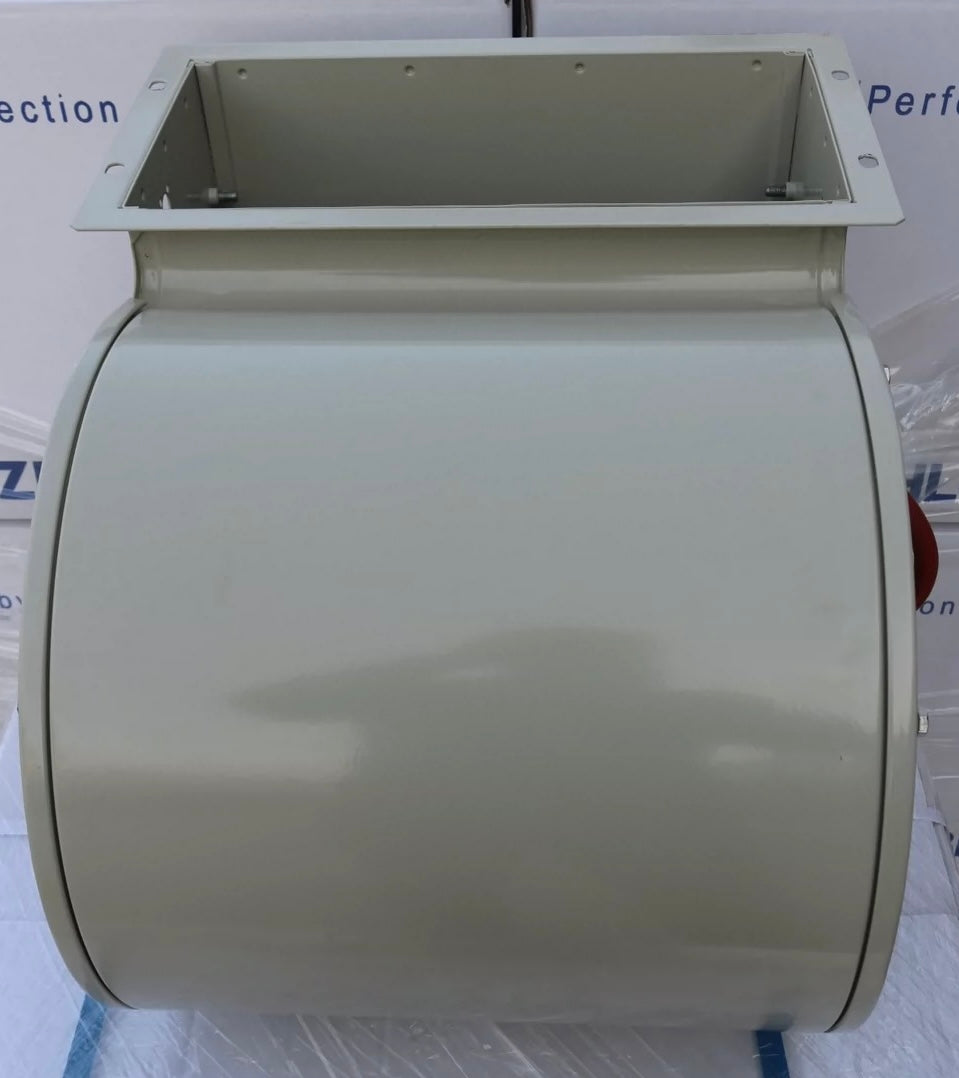

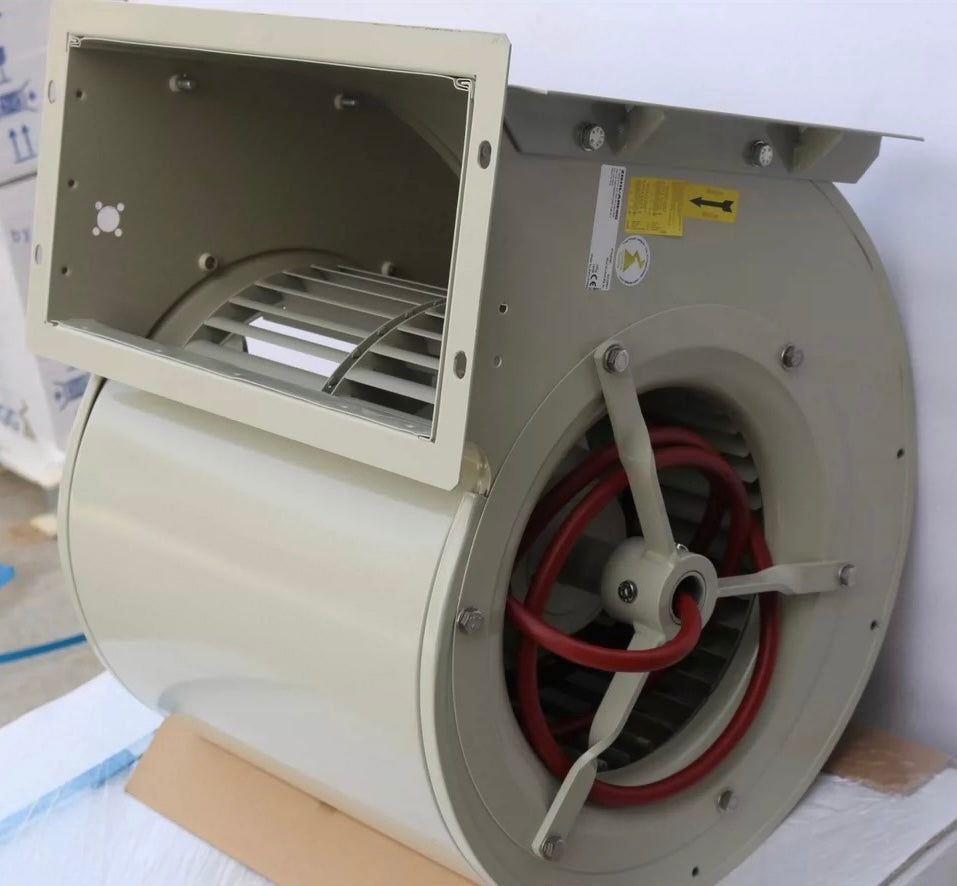

Designation | Double inlet centrifugal fan with spiral housing. |

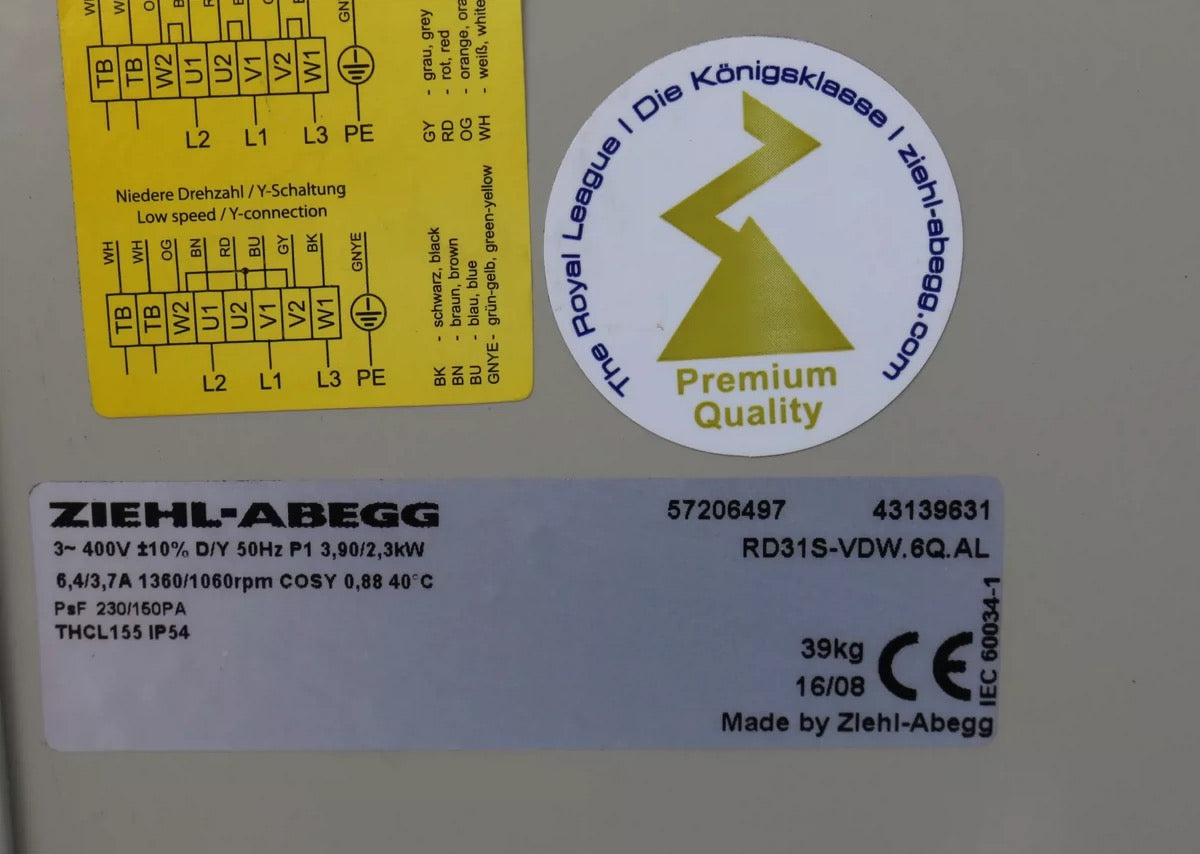

Rated values | 3~400V ±10% D/Y 50Hz P1=3.90/2.30kW |
6.40/ 3.70A 1300/1060/min COSY 0,88 PsF 230/150PA | |
Electrical connection | Supply cable axial. |
9x 0,75 mm² x 300 cm from shaft-end | |
ErP Data | Measurement category ErP: A |
Air flow qv on Eta opt: 3417 m3/h | |
Pressure increase pfs on Eta opt: 659 Pa | |
Input power P1 on Eta opt: 1355 W | |
Efficiency ηstatA: 47.4 % | |
Efficiency grade: Nactual = 52.9 / Ntarget = 44* | |
*ErP 2015 | |
Min. operating temperature | -20°C |
Thermal class | 155 |
Type of protection | IP54 |
Connection diagram | wiring diagram: 1360-108XB. |
Rating plate | 1x fixed |
Motor protection | thermal contact |
Condensation holes open. | Open |
Housing paint | Housing powder-coated resistance class 1 (L-TI-0585) |
Housing colour | RAL 7032 (pebble grey) |
Material impeller | Impeller made of galvanised sheet metal |
Painting impeller | Impeller with 1 coatpaint RAL 7032 (pebbel grey). |
Colour motor | RAL 7032 (pebble grey) |
Colour impeller | RAL 7032 (pebble grey) |
Special bearing | Ball bearing with long-time lubrication Ballbearing in special design |
Other | All connecting elements made of stainless steel. |
Other | All connecting elements secured with Loctite. |
Other | Special impregnation HV. |
Min. operating temperature | -20°C |
Operating manual | L-BAL-005 |
Wuchtgüte (generiert) | G 2.5 |
Weight | 37KG |
More products details please visit DATASHEET
Product type | Centrifugal fan |
Warranty | 1 year |
Net weight | 39 kg |
Shipping Dimension | 60*60*50 cm |
Ship From | HongKong |
Lead time | 5 days |
Delivery time | 3-8 days |
Ship By | DHL/UPS |
Sell and ship only genuine products from factory. | |
Promise Meet all factory specs fit form and function. | |
30 days returns policy, 100% customers satisfactions | |
Large quantity inquiry please contact email & Skype: sales@axialfanz.com |
